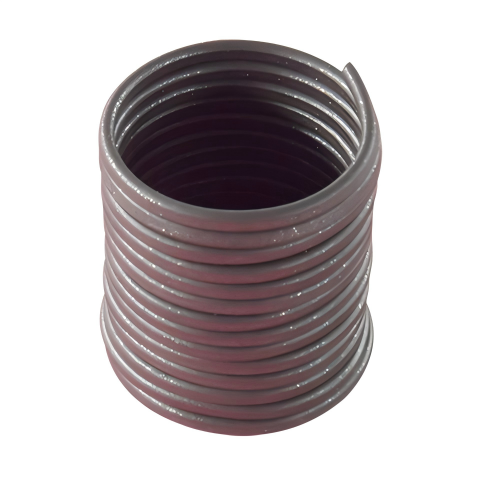

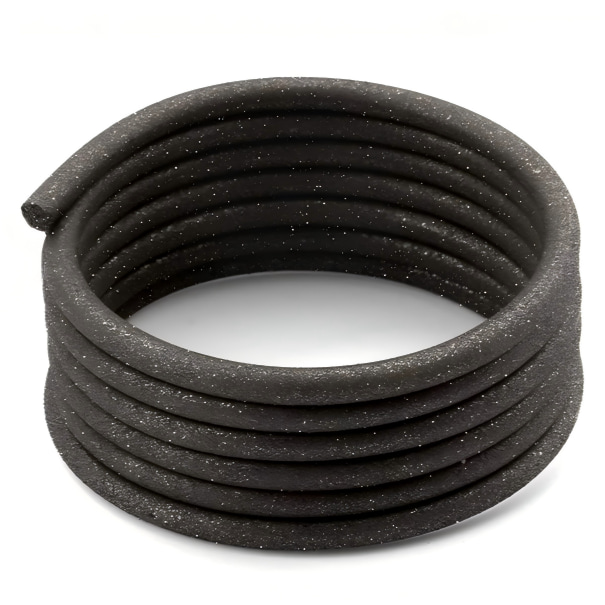

3mm Small Diameter Round Flexible Magnetic Strip for Purse and Wallet

Product Overview

Neodymium flexible magnet is a high‑energy magnetic material made by compounding rare‑earth NdFeB powder with a flexible rubber matrix (such as NBR, CPE, or PVC) through extrusion or calendering. It retains the process advantages of rubber magnets – bendable, cuttable, and die‑cuttable – while delivering magnetic performance far superior to conventional ferrite rubber magnets.

⇒ Learn more professional insights

Dimensions: 3.5 x 1000 mm

Material: CPE (base material) + NdFeB (magnetic powder)

[Surface Magnetic Field Strength] 1322 Gs

[Suitable Fabric Thickness] Recommended ≤0.5 mm (adsorption gap ≤1.0 mm)

[Minimum Usage Length] Recommended ≥150 mm

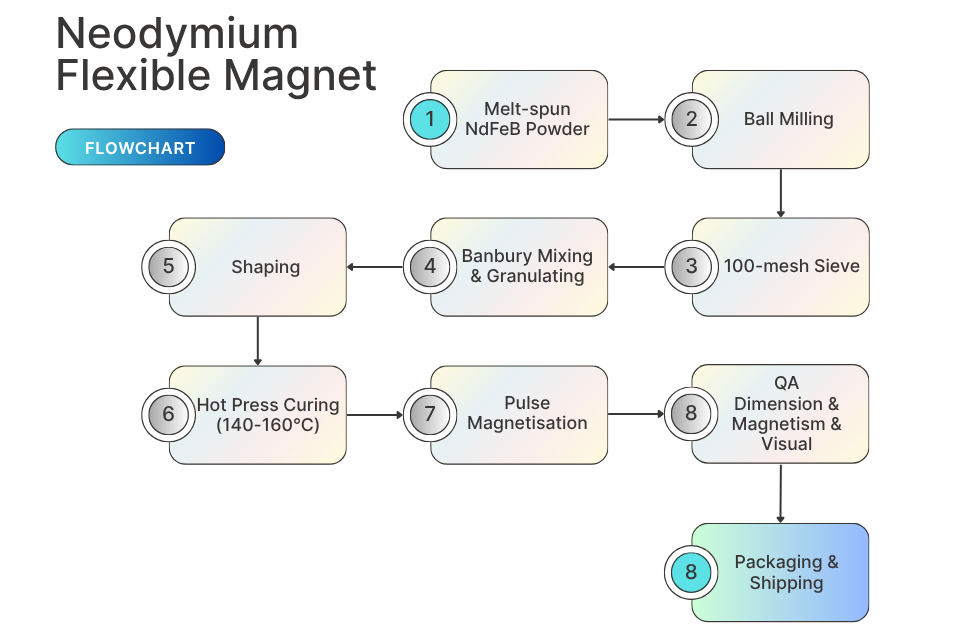

Production Process

Performance Parameters

Core value: Provides high magnetic holding force or sensing signal within limited installation space, while resisting vibration, temperature changes, oil, moisture, and other industrial environment conditions.

Key Features:

• High energy product (44–96 kJ/m³)
• Flexible and cuttable
• Multi‑pole magnetisation (2–24 poles)
• Operating temperature: -40°C ~ +120°C
• Oil‑resistant grade (NBR) available
• 3M adhesive backing optional

Customisation:

• Thickness: 0.5–6 mm
• Width: 5–300 mm
• Shapes: strip, sheet, ring, die‑cut
• Magnetisation: single pole or multi‑pole
• Matrix: CPE / NBR / custom formula

Typical Applications:

Frequently Asked Questions (FAQ)

Q: What is the difference between neodymium flexible magnet and ordinary ferrite flexible magnet?

A: Magnetic strength. At the same thickness, neodymium flexible magnet has 2–3 times the surface field of ferrite, and 5–10 times the energy product. It is suitable for industrial applications requiring higher magnetic force in a more compact space.

Q: Can I drill holes or screw into a neodymium flexible magnet?

A: Pre‑punching during manufacturing is recommended. Field drilling may damage the magnetic powder layer, causing local field reduction or edge cracking.

Q: Will this magnet be damaged in an oily environment?

A: The standard CPE matrix is not oil‑resistant. Please choose the NBR (nitrile rubber) matrix grade – it has good resistance to mineral oils and hydraulic fluids.

Q: What is the minimum order quantity (MOQ)?

A: Standard rolls (fixed width): 1,000 metres. Custom die‑cut parts: 5,000 pieces (new tooling). Special matrix (e.g., NBR oil‑resistant grade): 1,000 m² or equivalent value.

Q: What technical documents can you provide?

A: TDS, MSDS, RoHS/REACH declarations, magnetic performance curves, pole pitch inspection reports, etc.
