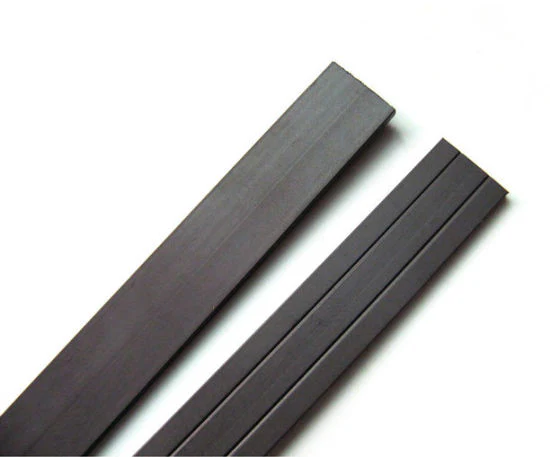

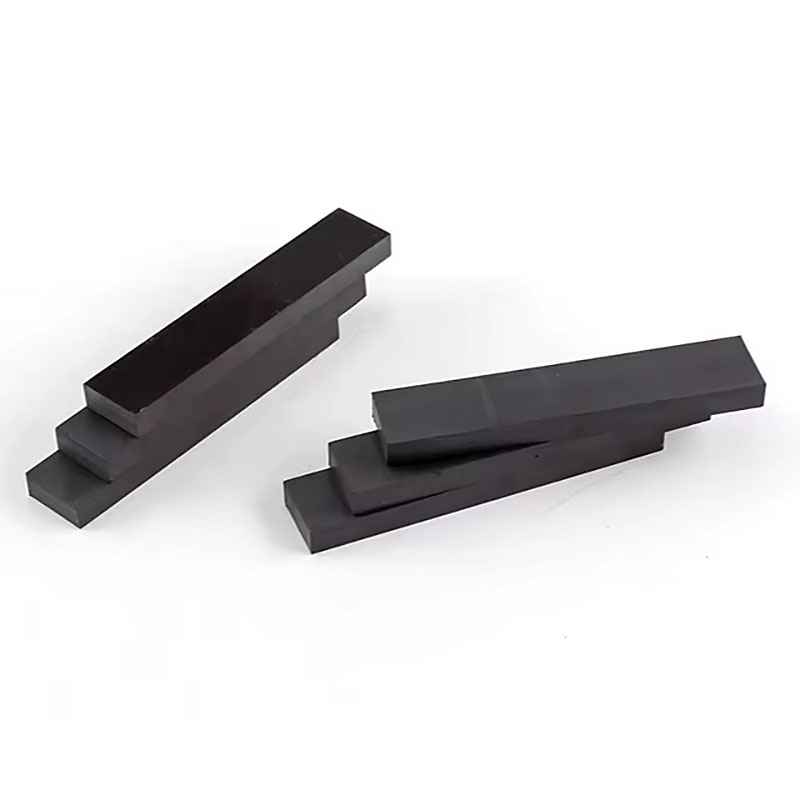

Strong Ferrite Magnetic Strips Double-sided Magnetized Multi-pole Flexible Magnet Tapes For Sensors Or Measuring Devices
Double-sided multi-pole magnetic strips in customizable sizes for sensors and measuring devices.
Packaging :
cardboard cartonPayment :
T/T PrepaymentProduct Origin :
CNDelivery time :
30 daysCoating :
Support customizationBacking Type :
Support customizationDimensions (LxWxT) :
Support customizationGrade :
Anisotropic/isotropicⅠ.Product base:
Below are some of our experiences ：

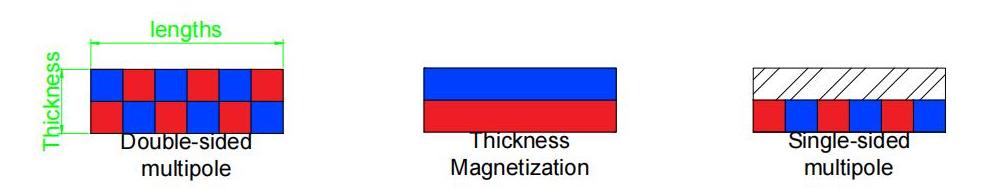

Ⅱ.Direction of magnetization
Normally the magnetic tape is single sided and multipolar, but we accept requests for thickness direction magnetization and double sided multipolar magnetization.
Ⅲ.Magnetic characteristics
| / | Residual magnetic flux density Br | Coercive force bHc | Coercive force iHc | Maximum energy product BH max |
| Isotropic | 180±25 | 110±20 | 190±50 | 5.6±0.8 |
| anisotrop | 245±15 | 179±12 | 235±44 | 11.2±0.8 |
| Grade | Thickness (mm) |
Width (mm) |
Length (m) |
Surface magnetic flux density mT (G) | Adsorption power N / cm2(G / cm²） |
| Isotropic | 0.4 | 520 | 20 | 25 | 0.2 (20) |
| Isotropic | 0.6 | 520 | 20 | 31 | 0.3 (31) |
| Isotropic | 0.8 | 520 | 10 | 38 | 0.45 (46) |
| Isotropic | 1 | 520 | 10 | 44 | 0.55 (56) |
| Isotropic | 1.2 | 520 | 10 | 49 | 0.6 (61) |
| Isotropic | 1.6 | 520 | 10 | 51 | 0.65 (65) |
| Isotropic | 2 | 520 | 10 | 53 | 0.7 (71) |
| anisotropy | 0.4 | 520 | 10 | 30 | 0.25 (25) |
| anisotropy | 0.6 | 520 | 20 | 36 | 0.4 (41) |
| anisotropy | 0.8 | 520 | 10 | 42 | 0.6 (61) |
| anisotropy | 1 | 300 | 0.3 | 50 | 0.8 (82) |
| anisotropy | 1 | 520 | 10 | 50 | 0.8 (82) |
| anisotropy | 1.2 | 520 | 10 | 54 | 0.85 (87) |
| anisotropy | 1.5 | 520 | 10 | 58 | 0.95 (97) |
| anisotropy | 2 | 520 | 10 | 63 | 1.0 (102) |
| anisotropy | 3 | 300 | 0.3 | 70 | 1.1 (112) |
| anisotropy | 3 | 520 | 5 | 70 | 1.1 (112) |
Double-sided multi-pole magnetic strips in customizable sizes for sensors and measuring devices.
